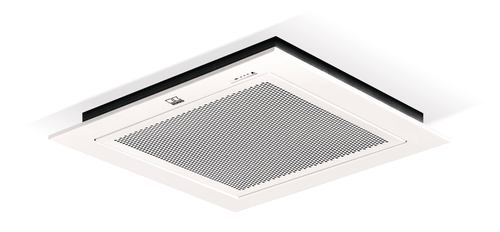

Ceiling cassette KWD 100 EC Coanda with EPA filter
Ceiling cassette KWD 100 EC Coanda with EPA filter
Ceiling cassette KWD 100 EC Coanda with EPA filter

KWD EC COANDA SERIES Ceiling cassettes in 2-pipe design with 360-degree air outlet

  • Chilled water systems
  • Cooling capacity: 2.60 - 9.70 kW

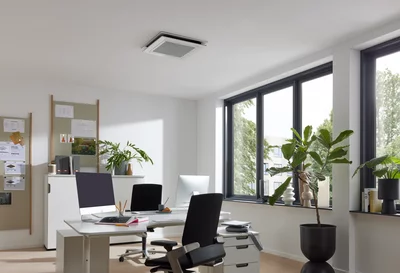

  • For offices and medical practices

Ceiling cassettes with EC fans and Coanda screen for low-flow unit operation and optimum air distribution

KWD EC Coanda ceiling cassettes use the physical properties of flowing air to evenly air-condition a room. Due to the specially designed unit cover, the air outlet is located at a small distance parallel to the ceiling, which creates a vacuum and increases the range. The flowing air therefore only falls slowly and draught-free into the room.
Compared to conventional systems, a more even air distribution is possible with the Coanda screen. Without draughts, a much more pleasant feel-good climate is created.
A Modbus interface is provided as standard.

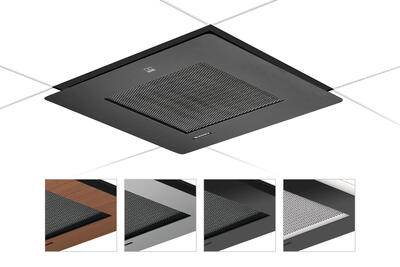

Design screen for customised upgrading

CDB series Design screen for customised upgrading

The specially designed REMKO Coanda design screen is the perfect complement to the KWD(-4) EC COANDA ceiling cassette. It gives the ceiling cassette a special touch of individuality. Whether existing devices or new installations, the design screen can be mounted cleanly, quickly, easily and without tools on the existing Coanda screen. The design screen is available in 3 colours as standard and can be printed individually on customer request. A printable file with at least 300 dpi is required for this.

  • Easy to install
  • Modern design
  • Customised design options
  • UV- and weather-resistant
  • No impairment of the unit function
  • Compatible with KWD(-4) EC Coanda single grid

Technical data

VariantKWD 25 EC Coanda (nylon filter)KWD 35 EC Coanda (nylon filter)KWD 45 EC Coanda (nylon filter)KWD 55 EC Coanda (nylon filter)KWD 70 EC Coanda (nylon filter)KWD 85 EC Coanda (nylon filter)KWD 100 EC Coanda (nylon filter)KWD 25 EC Coanda (EPA filter)KWD 35 EC Coanda (EPA filter)KWD 45 EC Coanda (EPA filter)KWD 55 EC Coanda (EPA filter)KWD 85 EC Coanda (EPA filter)KWD 100 EC Coanda (EPA filter)
Cooling capacity2.6 kW3.2 kW4.4 kW5.2 kW6.9 kW8.4 kW9.7 kW1.5 kW1.9 kW2.5 kW3.0 kW4.3 kW4.5 kW
Heating capacity3.7 kW4.1 kW5.4 kW6.8 kW8.7 kW11.2 kW12.3 kW2.0 kW2.4 kW3.1 kW3.9 kW5.7 kW5.9 kW
Air flow rate, speed settings, min.-max.180 - 440 m³/h220 - 520 m³/h215 - 684 m³/h229 - 974 m³/h385 - 1030 m³/h395 - 1578 m³/h393 - 1678 m³/h122 - 267 m³/h133 - 316 m³/h141 - 449 m³/h147 - 626 m³/h222 - 890 m³/h222 - 904 m³/h
Sound pressure level min.-max.20-27 dB(A)21-33 dB(A)22-42 dB(A)21-47 dB(A)28-37 dB(A)27-50 dB(A)28-53 dB(A)20-27 dB(A)21-33 dB(A)22-42 dB(A)21-47 dB(A)27-50 dB(A)28-53 dB(A)
Power supply230/1~/50230/1~/50230/1~/50230/1~/50230/1~/50230/1~/50230/1~/50230/1~/50230/1~/50230/1~/50230/1~/50230/1~/50230/1~/50
