MVT DC SERIES Multisplit air-conditioning systems for cooling or heating

Multisplit air-conditioning system
Cooling capacity: 5.30 - 12.30 kW
For offices and medical practices

Efficient air-conditioning solutions for several rooms at once

The MVT series is an efficient inverter air-conditioning solution that lets you operate up to 5 indoor units at once. In the process, you can combine wall-mounted units, ceiling cassettes, and wall or ceiling chests to suit your needs.

Up to 5 rooms can be cooled
Microprocessor-controlled unit technology
Coolant injection by electronic expansion valves
Outdoor units are filled with R32 refrigerant at the factory (line length up to 5 m)
Winter fan speed control for cooling and heating operation up to -15°C in the standard version
Automatic adjustment of the airflow in cooling and heating mode
Programmable 24-hour timer function
With infrared remote control in the standard version
Alarm contact (for Series MXD, MXT and ATY Deko)
Contact for external activation and deactivation (for Series MXW, MXD, MXT and ATY Deko)
Connection option REMKO Smart-Control Touch (for Series MXW, MXD, MXT and ATY Deko)
Wi-Fi connectivity optionally available (for Series MXW, MXD, MXT, ATY and ATY Deko)

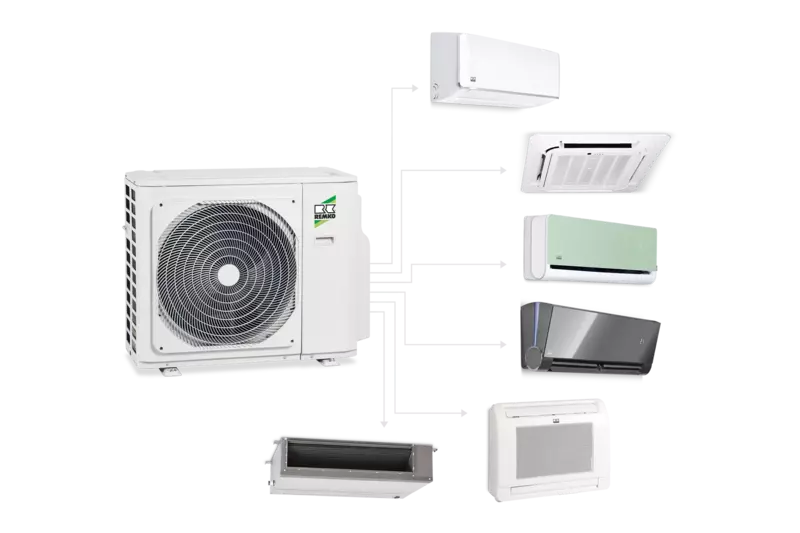

Combination possibilities MVT DC series

With the flexible multi-split air conditioning system, several indoor units can be connected to a single outdoor unit. Numerous combinations of output classes and appliance types are possible in order to fulfil individual requirements.

A detailed overview of the possible combinations can be found here.

Technical data

Variant	MVT 603 DC	MVT 903 DC	MVT 1053 DC	MVT 1403 DC
Energy efficiency rating for cooling	A++	A++	A++	A++
Energy efficiency ratio SEER	7.8	7.2	6.5	6.6
Power consumption annual, cooling, QCE	245 kWh	384 kWh	565 kWh	652 kWh
Room cooling annual utilisation factor ηs,c	309 %	285 %	257 %	261 %
Heating capacity	5.6 (2.3-7.2) kW	8.2 (2.0-8.5) kW	10.6 (2.3-11.1) kW	12.3 (2.3-14.8) kW
