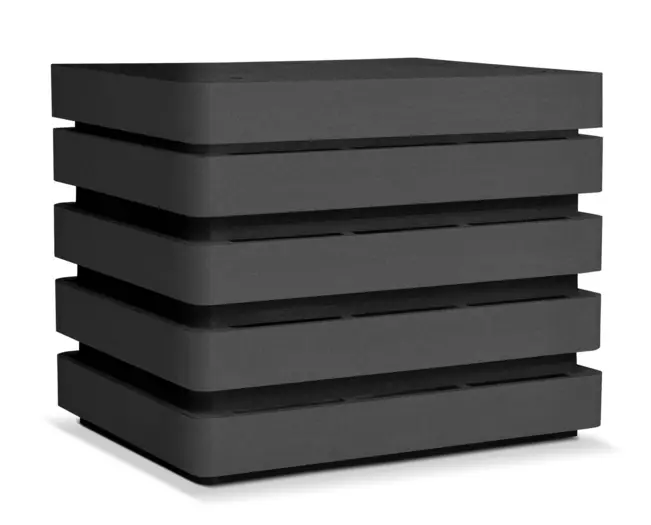

REMKO SWK SERIES Noise protection hoods for heat pumps and air conditioners

Variant EDV-Nr.
SWK 4 black
SWK 4 silver/black
SWK 4 green/black
SWK 4 brown/black
Special colour according to RAL
260904
260914
260934
260944
260954
SWK 5 black
SWK 5 silver/black
SWK 5 green/black
SWK 5 brown/black
Special colour according to RAL
260905
260915
260935
260945
260955
SWK 7 black
SWK 7 silver/black
SWK 7 green/black
SWK 7 brown/black
Special colour according to RAL
260907
260917
260937
260947
260957

Variant

REMKO SWK SERIES Noise protection hoods for heat pumps and air conditioners

Noise protection for demanding areas of application

The noise insulation hood is used especially in regions with high requirements on noise emissions. Due to the patented construction and noise-insulating effect of the EPP-polypropylene material, an effective noise reduction is achieved through air deflection.

Planning and setup

Due to the optical design, the noise protection hood can be easily integrated into the environment. Due to fire protection class B2 and UV resistance, they can be installed almost everywhere. In case of planning according to the German TALärm regulation (Technical Instructions for Noise Protection), the tonal component does not need to be taken into consideration. This is assumed to be up to 6 dB(A). According to the setup situation, the hood can then reduce the sound pressure level by up to 15 dB(A).

Version green/black

Version brown/black


Technical data

Variant SWK 4 black
SWK 4 silver/black
SWK 4 green/black
SWK 4 brown/black
Special colour according to RAL
SWK 5 black
SWK 5 silver/black
SWK 5 green/black
SWK 5 brown/black
Special colour according to RAL
SWK 7 black
SWK 7 silver/black
SWK 7 green/black
SWK 7 brown/black
Special colour according to RAL
Heat pump typeWKF 70 WKF 120 WKF 180
Air conditioner typeMVT 602/902 DC MVT 1052/1402 DC MVV 1200-2000 DC
Outer dimensions H/W/D1155/1385/1100 mm1400/1385/1100 mm1880/1385/1100 mm
Max. unit size1020/1000/460 mm1260/1000/460 mm1740/1000/460 mm
Colour versionähnlich RAL 7021 ähnlich RAL 7021 ähnlich RAL 7021
Sound reductionbis zu 13 dB dB(A)bis zu 10 dB(A) dB(A)bis zu 8 dB(A) dB(A)
Tonalityentfällt entfällt entfällt
Weight40 kg43 kg48 kg
