REMKO AMX SERIES Aqua-Multiflex airconditioning systems
REMKO AMX SERIES Aqua-Multiflex airconditioning system
The flexible complete system
Aqua-Multiflex air-conditioning systems are a particularly environment-friendly and future-proof way to cool buildings. Since it is a water-guided system, installation can be carried out without extensive cooling system work.
Aqua-Multiflex air-conditioning systems are available as complete packages in various output sizes, with 2 to 6 indoor units alternatively. In the process, all indoor units can be freely combined within the package. Your advantage: You obtain an individual, complete package at an attractive fixed price!
- Environment-friendly due to the use of water as the energy source
- Easy installation by HVAC specialist
- Powerful pumps make long pipelines possible
- No refrigerant in the building
- All indoor units can be freely combined within the package.

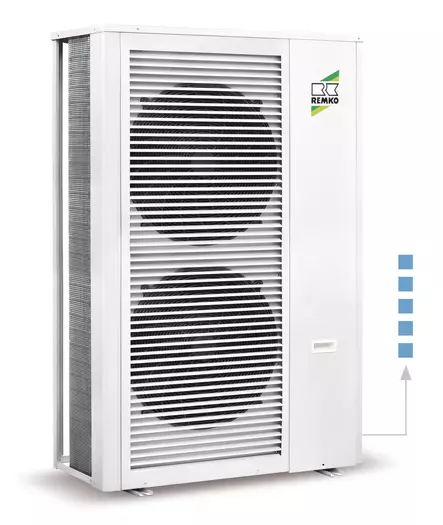

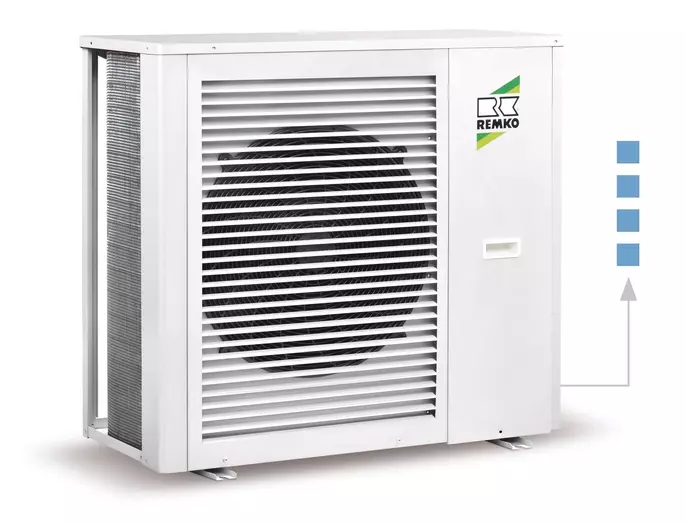

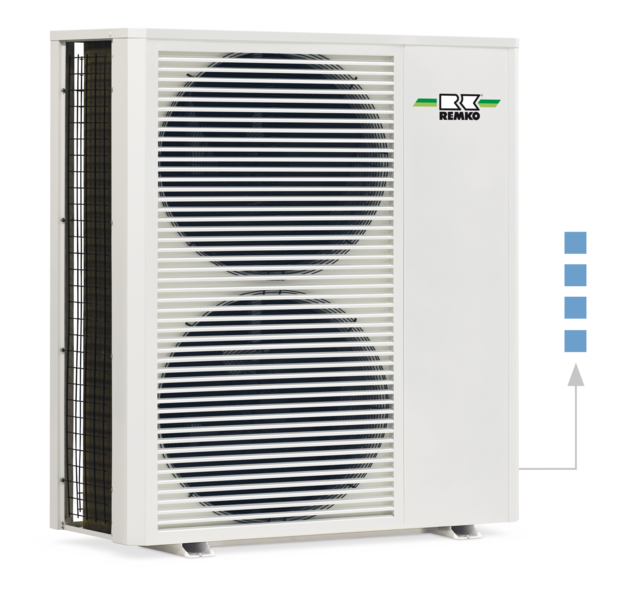

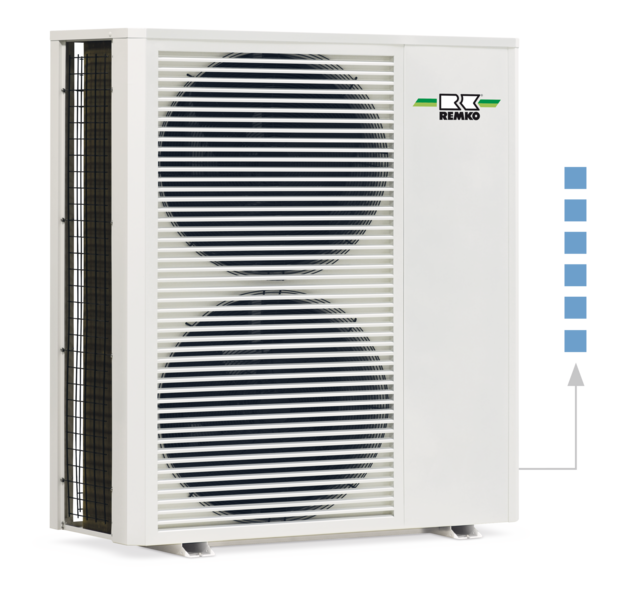

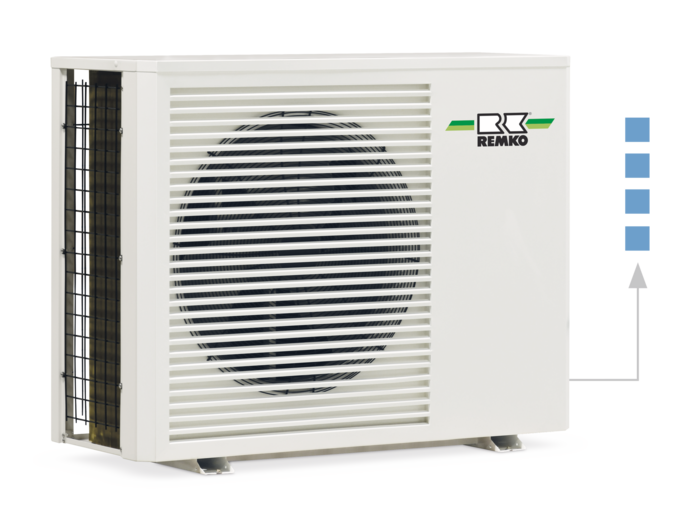

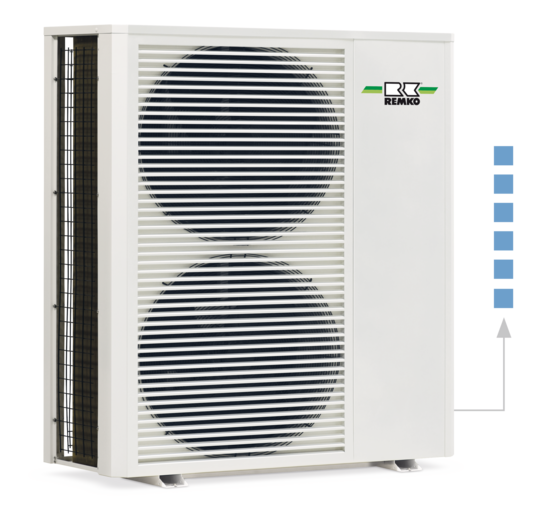

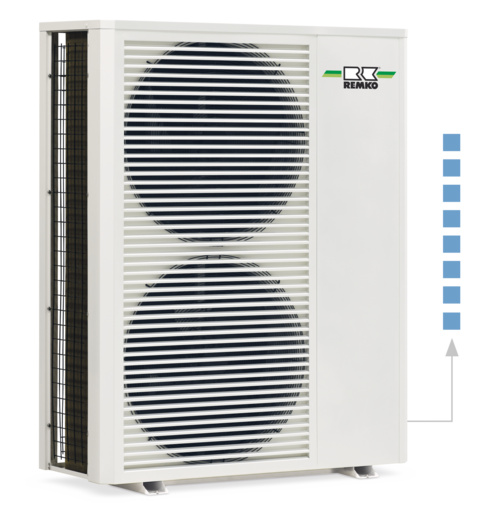

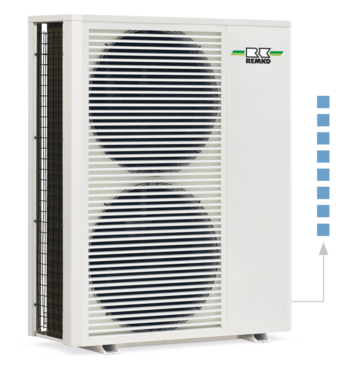

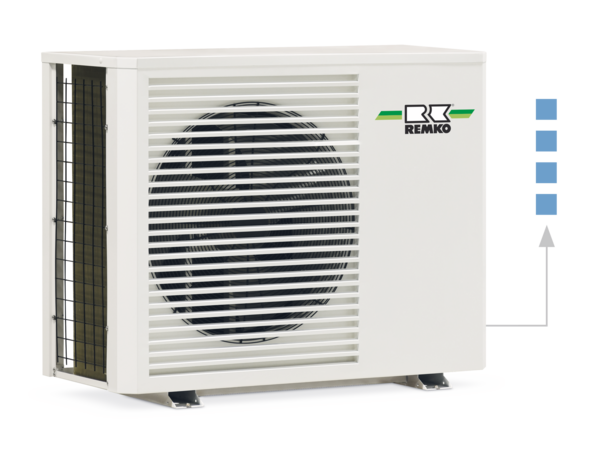

Chiller RVS DC series
That's how it's done
Determine the overall cooling capacity and number of required indoor units. Then select the right packaging consisting of the cold water generator and several indoor units. All indoor units can be freely combined within the package. The total cooling capacity of the selected indoor units should be the same as or slightly above the Aqua-Multiflex air-conditioning system.
The accessories required for the complete system must be ordered separately.
Calculation example 1 10 kW overall cooling capacity with 3 indoor units
| AMX 803 series | ||||
|---|---|---|---|---|
| Cold water generator RVS 80 DC | 10,0 kW | |||
| Type | Cooling capacity | |||
| Ceiling cassette KWD 35 series | + | 3,3 kW | ||
| Ceiling cassette KWD 35 series | + | 3,3 kW | ||
| Wall-mounted unit WLT 30 EC series | + | 2,8 kW | ||
| Overall cooling capacity of indoor units | = | 9,4 kW |
Calculation example 2 20 kW overall cooling capacity with 4 indoor units
| AMX 1804 series | ||||
|---|---|---|---|---|
| Cold water generator RVS 180 DC | 20,0 kW | |||
| Type | Cooling capacity | |||
| Wall-mounted unit WLT 50 EC series | + | 4,9 kW | ||
| Wall-mounted unit WLT 50 EC series | + | 4,9 kW | ||
| Wall and ceiling chest KWK 455 series | + | 4,5 kW | ||
| Wall and ceiling chest WKW 535 series | + | 5,4 kW | ||
| Overall cooling capacity of indoor units | = | 19,7 kW |
The right package for every cooling capacity
5,6 kW Overall cooling capacity

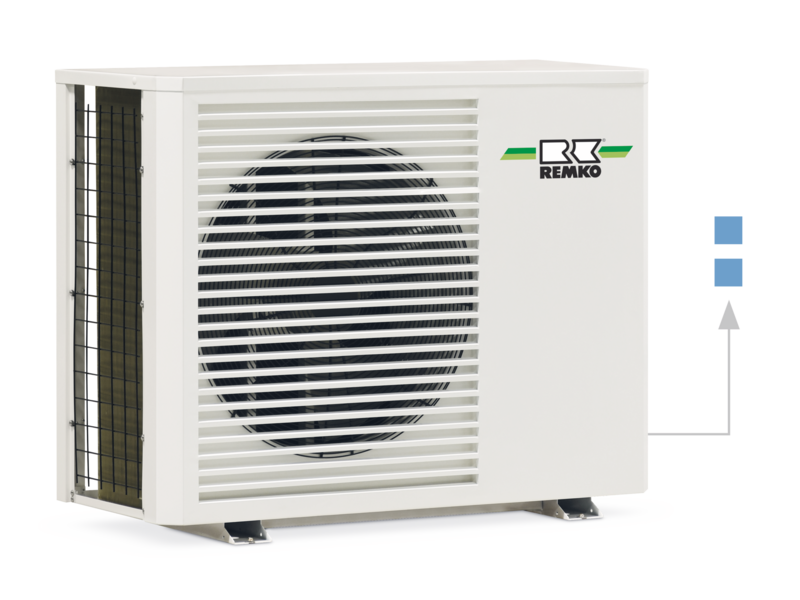

2 indoor units
AMX 502 series
2 indoor units at buyer's option
+ cold water generator RVS 50 DC
Ref. no. 1680502

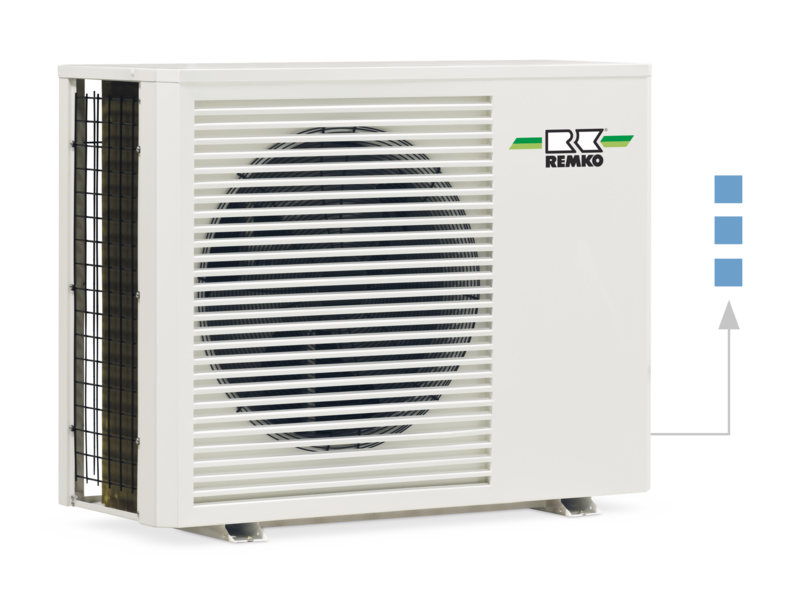

3 indoor units
AMX 503 series
3 indoor units at buyer's option
+ cold water generator RVS 50 DC
Ref. no. 1680503
10,0 kW Overall cooling capacity
2 indoor units
AMX 802 series
2 indoor units at buyer's option
+ cold water generator RVS 80 DC
Ref. no. 1680802

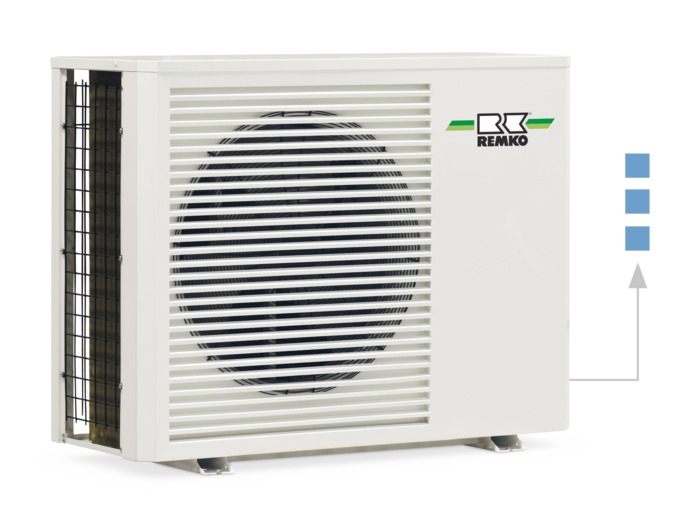

3 indoor units
AMX 803 series
3 indoor units at buyer's option
+ cold water generator RVS 80 DC
Ref. no. 1680803

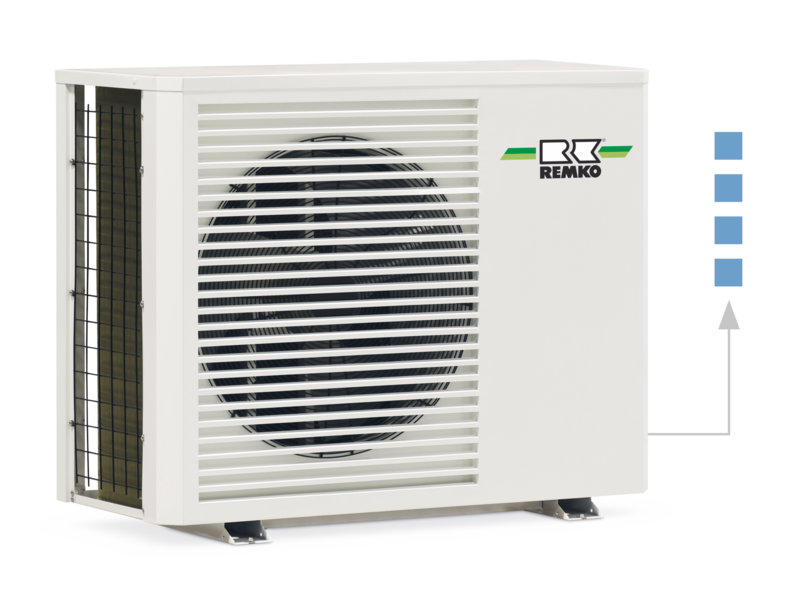

4 indoor units
AMX 804 series
4 indoor units at buyer's option
+ cold water generator RVS 80 DC
Ref. no. 1680804
14,5 kW Overall cooling capacity

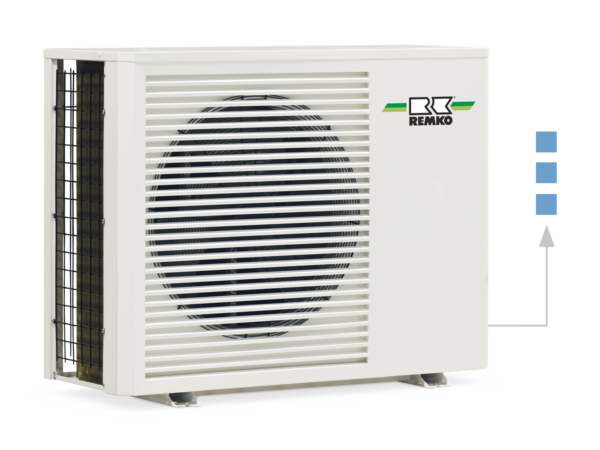

3 indoor units
AMX 1303 series
3 indoor units at buyer's option
+ cold water generator RVS 130 DC
Ref. no. 1681303

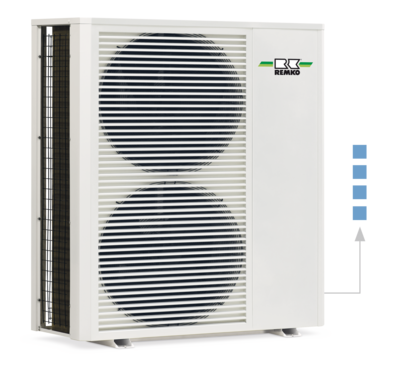

4 indoor units
AMX 1304 series
4 indoor units at buyer's option
+ cold water generator RVS 130 DC
Ref. no. 1681304
5 indoor units
AMX 1305 series
5 indoor units at buyer's option
+ cold water generator RVS 130 DC
Ref. no. 1681305
20,0 kW Overall cooling capacity
4 indoor units
AMX 1804 series
4 indoor units at buyer's option
+ cold water generator RVS 180 DC
Ref. no. 1681804
5 indoor units
AMX 1805 series
5 indoor units at buyer's option
+ cold water generator RVS 180 DC
Ref. no. 1681805
6 indoor units
AMX 1806 series
6 indoor units at buyer's option
+ cold water generator RVS 180 DC
Ref. no. 1681806

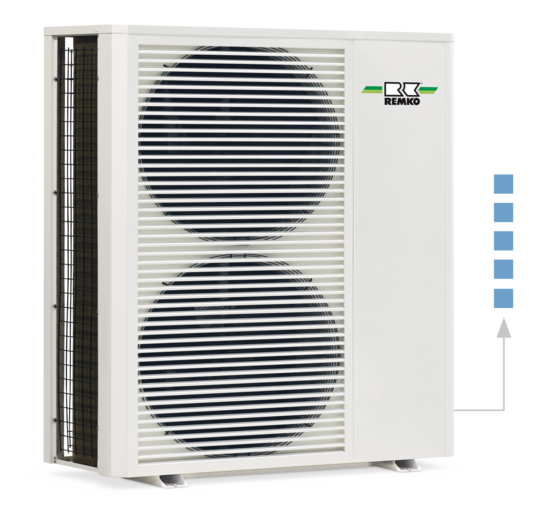

22,0 kW Overall cooling capacity
5 indoor units
AMX 2205 series
5 indoor units at buyer's option
+ cold water generator RVS 220 DC
Ref. no. 1682205
6 indoor units
AMX 2206 series
6 indoor units at buyer's option
+ cold water generator RVS 220 DC
Ref. no. 1682206

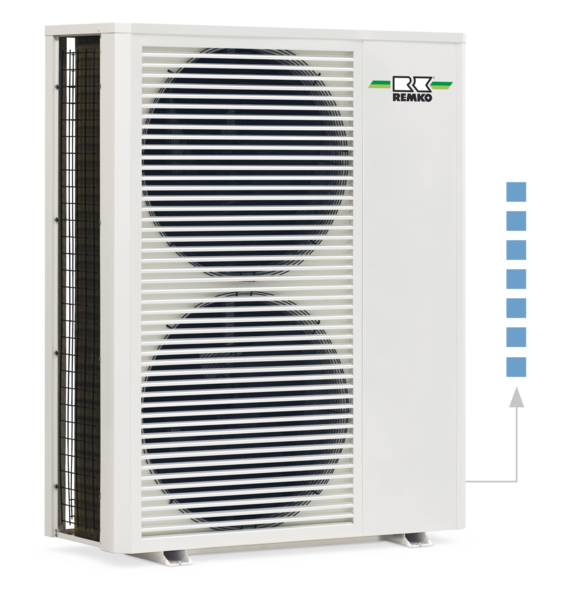

7 indoor units
AMX 2207 series
7 indoor units at buyer's option
+ cold water generator RVS 220 DC
Ref. no. 1682207
26,0 kW Overall cooling capacity
5 indoor units
AMX 2605 series
5 indoor units at buyer's option
+ cold water generator RVS 260 DC
Ref. no. 1682605
6 indoor units
AMX 2606 series
6 indoor units at buyer's option
+ cold water generator RVS 260 DC
Ref. no. 1682606
7 indoor units
AMX 2607 series
7 indoor units at buyer's option
+ cold water generator RVS 260 DC
Ref. no. 1682607

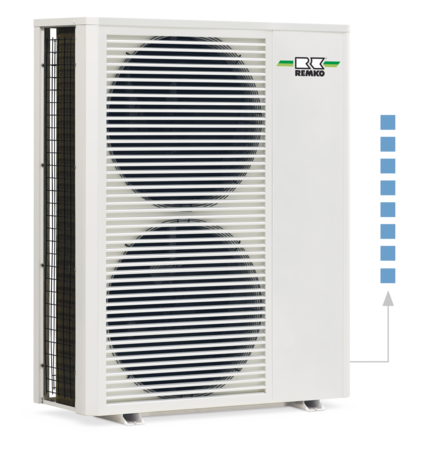

8 indoor units
AMX 2608 series
8 indoor units at buyer's option
+ cold water generator RVS 260 DC
Ref. no. 1682608
Indoor units
| Unit type | Cooling capacity | |
|---|---|---|
| WLT 30 EC | 2,8 kW | |
| WLT 40 EC | 3,7 kW | |
| WLT 50 EC | 4,9 kW | |
| WLT 60 EC | 6,1 kW |
| Unit type | Cooling capacity | |
|---|---|---|
| KWK 125 | 1,2 kW | |
| KWK 165 | 1,6 kW | |
| KWK 205 | 2,1 kW | |
| KWK 255 | 2,5 kW | |
| KWK 305 | 3,1 kW | |
| KWK 355 | 3,5 kW | |
| KWK 455 | 4,5 kW | |
| KWK 535 | 5,4 kW | |
| KWK 595 | 5,9 kW |
| Unit type | Cooling capacity | |
|---|---|---|
| KWK 125 ZW | 1,2 kW | |
| KWK 165 ZW | 1,6 kW | |
| KWK 205 ZW | 2,1 kW | |
| KWK 255 ZW | 2,5 kW | |
| KWK 305 ZW | 3,1 kW | |
| KWK 355 ZW | 3,5 kW | |
| KWK 455 ZW | 4,5 kW | |
| KWK 535 ZW | 5,4 kW | |
| KWK 595 ZW | 5,9 kW |
