REMKO EFS SERIES Fresh water stations

Variant	EDV-Nr.	Transmission power
EFS 25	260155	30 kW
EFS 35	260156	79 kW
EFS 50	260157	122 kW
EFS 35 Duo	260158	2x 79 kW
EFS 50 Duo	260159	2x 122 kW

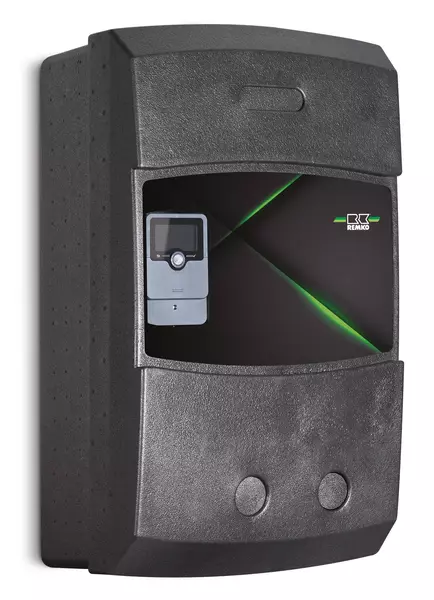

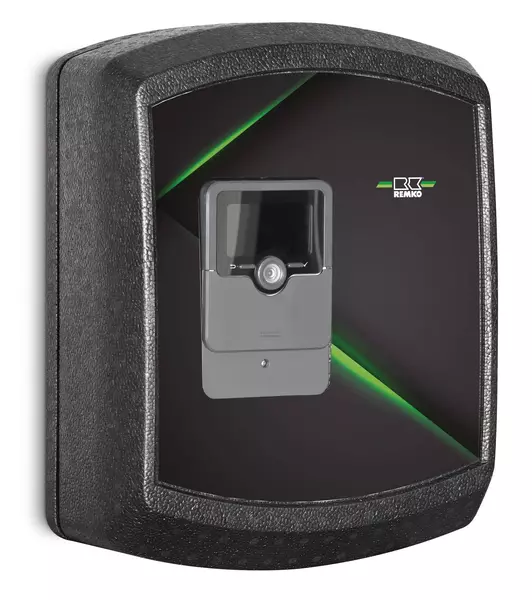

REMKO EFS SERIES Fresh water stations

Central hot water preparation unit

The fresh water stations of REMKO are used for hygienic domestic water preparation in connection with buffer tanks. The units are completely equipped with electronic control, speed-controlled high-efficiency pump, flow switch, and plate heat exchanger. The heat exchanger is designed for a high flow rate of 25 l/min (EFS 25), 35 l/min (EFS 35) and/or 50 l/min (EFS 50).

Through the cascading of EFS 35 or EFS 50 to EFS 35/50 Duo, the flow rate can be increased to 64 l/min and/or 100 l/min. The fresh water stations are delivered ready for wall mounting in the EPP housing.

Technical data

Variant	EFS 25	EFS 35	EFS 50	EFS 35 Duo	EFS 50 Duo
Type of fresh water station	Frischwassermodul	Frischwassermodul	Frischwassermodul	Frischwassermodule	Frischwassermodule
Transmission power	30 kW	79 kW	122 kW	2x79 kW	2x122 kW
Flow rate 45°C /50°C	17 l/min	32 l/min	50 l/min	64 l/min	100 l/min
Flow rate 45°C/60°C	28 l/min	50 l/min	77 l/min	100 l/min	154 l/min
Flow rate 45°C/70°C	36 l/min	64 l/min	88 l/min	128 l/min	176 l/min
Primary pressure max.	3 bar	3 bar	3 bar	3 bar	3 bar
Secondary pressure max.	10 bar	10 bar	10 bar	10 bar	10 bar
Operating temperature	2-95 °C	2-95 °C	2-95 °C	2-95 °C	2-95 °C
Min. buffer volume for hot water operation	500 l	800 l	1000 l	1000 l	2000 l
Installation site	Speicher/Wand	Wand	Wand	Wand	Wand
Height (with insulation)	645 mm	795 mm	795 mm	1254 mm	1267 mm
Width (with insulation)	348 mm	602 mm	602 mm	1379 mm	1379 mm
Depth (with insulation)	249 mm	298 mm	298 mm	298 mm	298 mm
Gravity brake	200 mmWs	2x200 mmWs	2x400 mmWs	4x200 mmWs	4x400 mmWs
Primary pump	HE Pumpe	HE Pumpe	HE Pumpe	HE Pumpe	HE Pumpe
Secondary pump	HE Pumpe	HE Pumpe	HE Pumpe	HE Pumpe	HE Pumpe
Heat exchanger	Edelstahl	Edelstahl	Edelstahl	Edelstahl	Edelstahl
Primary connections	3/4 inch	1 1/2 inch	2 inch	2 inch	2 inch
Secondary connections	3/4 inch	1 inch	1 1/4 inch	1 1/4 inch	1 1/4 inch
Cascade pipe assembly	Nein	Nein	Nein	Ja	Ja
Insulation	EPP	EPP	EPP	EPP	EPP
