KWK SLIM EC SERIES Wall and floor chests

Chilled water systems
Cooling capacity: 0.90 - 4.00 kW
For offices and living spaces

Fan coil for cooling and heating

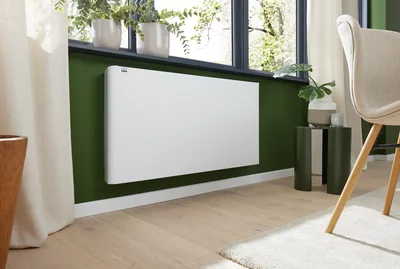

The KWK Slim EC is a high-quality fan coil unit that can be used for both cooling and heating. With a cooling capacity of 0.9 to 4.0 kW and a heating capacity of 1.0 to 4.4 kW, it offers flexible applications for various room sizes. The simple, modern design with an exceptionally slim build – just 125 mm in depth – blends seamlessly into any environment. Thanks to modern EC fan technology, the KWK Slim EC enables maximum energy savings while operating quietly. With a height of 540 mm, it is ideally suited for replacing panel radiators with a height of 600 mm, ensuring easy integration into existing heating systems. Experience efficient climate control in a compact design with the KWK Slim EC.

Especially quiet
All capacities are just 540 mm high
Timeless, simple, and attractive design
EC fan for maximum energy-saving operation
Especially slim installation height of 125 mm

Smart-Control Touch SC-20 The smart control for your chilled water air conditioning system

The smart, intuitive controller offers you extensive control over your chilled water units and real-time information about your system.

Mehr erfahren

Technical data

Variant	KWK 90 Slim EC	KWK 190 Slim EC	KWK 280 Slim EC	KWK 340 Slim EC	KWK 380 Slim EC
Cooling capacity	0.9 kW	1.9 kW	2.8 kW	3.4 kW	4.0 kW
Heating capacity	1.0 kW	2.0 kW	3.1 kW	3.7 kW	4.4 kW
Air flow rate min.-max.	50-180 m³/h	95-350 m³/h	165-500 m³/h	198-600 m³/h	224-680 m³/h
Sound pressure level min.-max.	20-31 dB(A)	20-33 dB(A)	22-35 dB(A)	22-36 dB(A)	23-38 dB(A)
Power supply	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50
