DXM 501 series

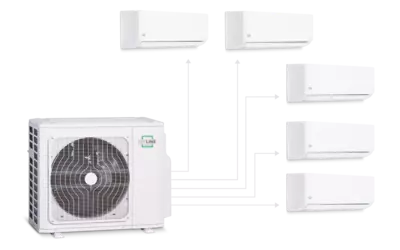

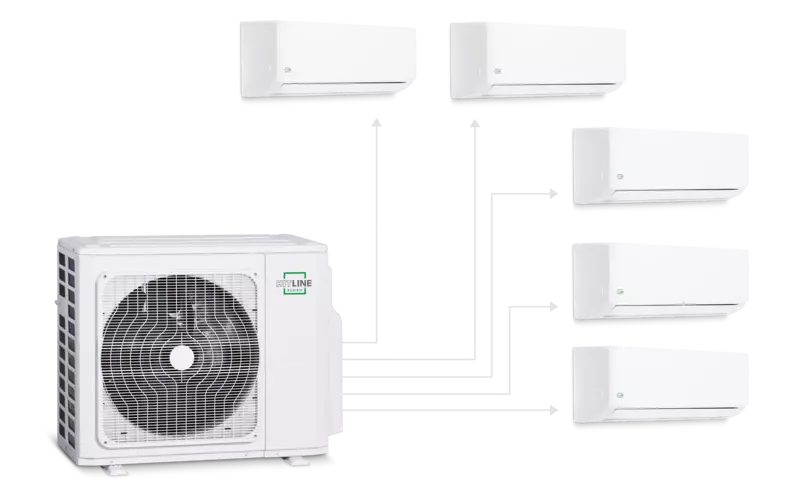

2 wall-mounted units DXW 261
+ Multisplit outdoor unit DXM 501 DC

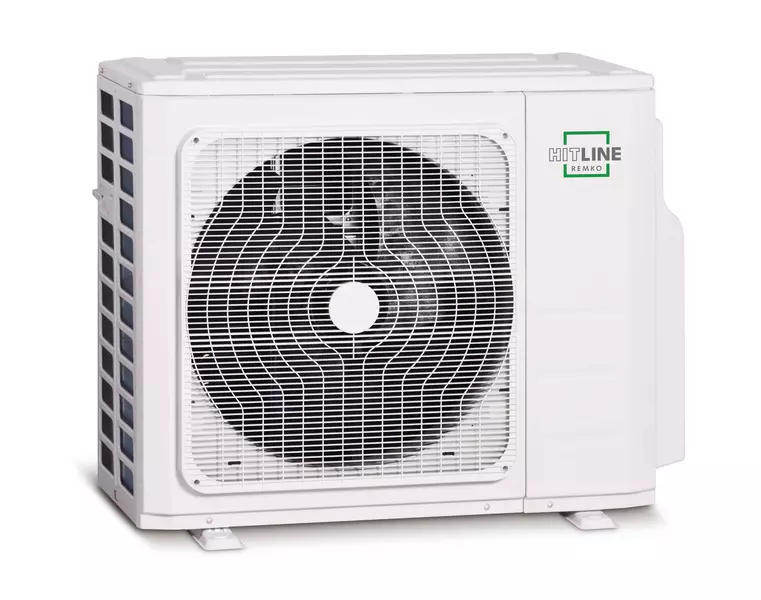

Outdoor unit DXM DC

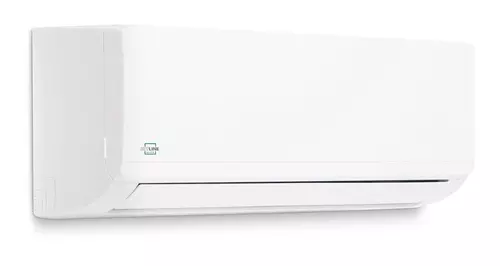

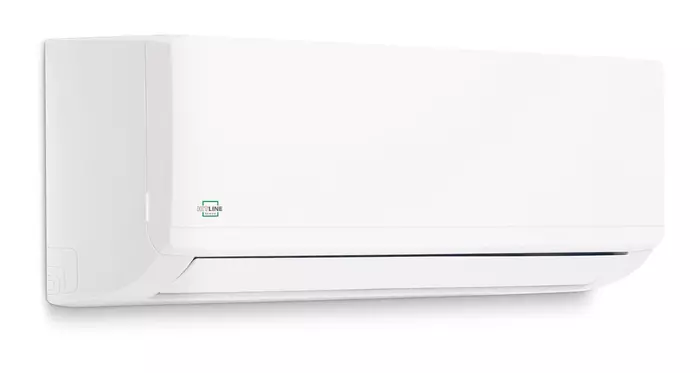

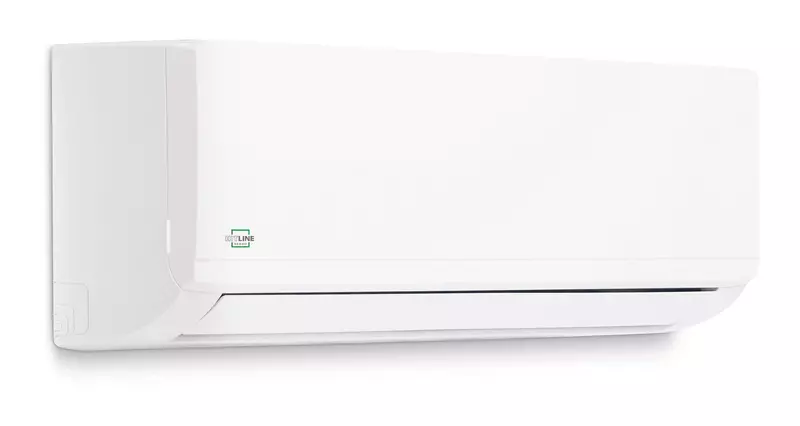

Wall-mounted unit DXW 261
DXM SERIES The flexible air conditioning solution for multiple rooms
- Multisplit air-conditioning system
- Cooling capacity: 5.30-12.30 kW
- For offices and medical practices
The efficient air conditioning solution for several rooms with one outdoor unit
The DXM series is an efficient inverter air conditioning solution that allows up to 5 wall-mounted units to be operated simultaneously on one outdoor unit. You can choose from 4 packages with cooling capacities from 5 kW to 13 kW.
The wall-mounted appliances in the DXW series impress with their compact design and attractive housing with a high-gloss finish. The innovative concealed display stylishly rounds off the design.
Outdoor unit
- Up to 5 rooms can be cooled
- Microprocessor-controlled unit technology
- Coolant injection by electronic expansion valves
- Outdoor units are filled with R32 refrigerant at the factory (line length up to 5 m)
- Standard winter fan speed control for heating operation down to -15 °C
Wall-mounted unit
- Quiet operation
- With infrared remote control in the standard version
- Programmable timer function for activation and deactivation times
- Swing function
The right package for every cooling capacity
Technical data
| Variant | DXM 501 DC | DXM 801 DC | DXM 1001 DC | DXM 1301 DC | DXW 261 |
|---|---|---|---|---|---|
| Cooling capacity | 5.3 (2.1-6.9) kW | 7.9 (2.9-8.5) kW | 10.5 (2.1-10.6) kW | 12.3 (2.1-14.2) kW | 2.6 kW |
| Energy efficiency rating for cooling | A++ | A++ | A++ | A++ | |
| Energy efficiency ratio SEER | 6.1 | 6.1 | 6.5 | 6.1 | |
| Power consumption annual, cooling, QCE | 304 kWh | 453 kWh | 565 kWh | 652 kWh | |
| Room cooling annual utilisation factor ηs,c | 241 % | 241 % | 257 % | 241 % |
