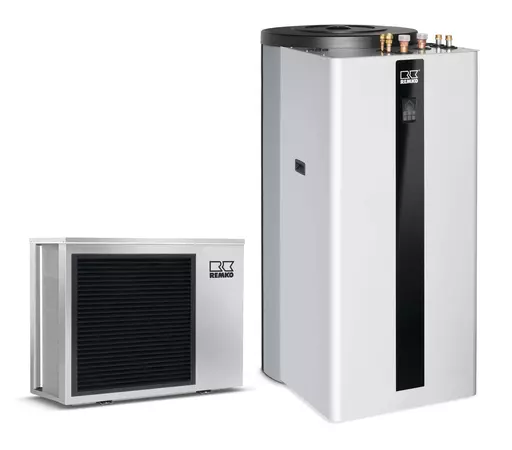

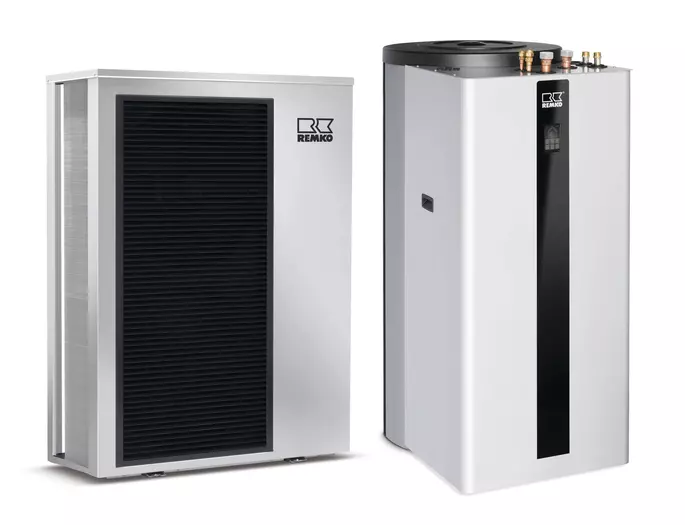

WKF NEO COMPACT SERIES Air/water system for heating and cooling

Single-split heat pump
Area of use: 1 - 16 kW
For new construction

The compact class saves space and installation effort

The WKF Neo compact series does not require a large mounting area due to its compact construction and integrated components. In connection with underfloor heating, this unit is perfectly suited for new buildings. This construction saves space in the mounting area. The costs for installation are strongly reduced by the high percentage of premounted components.

Low spatial requirements in utility room
Low investment costs
High inlet temperatures up to 60°C
Power-modulated operation due to modern inverter mode
Low operating costs due to high COP value
Ready for connection of solar system to domestic water supply
Night operation to reduce noise
Heating and cooling
Mounting-friendly installation - all connections are located at the top
High hot-water comfort due to integrated, enamelled domestic water tank with a volume of 200 or 300 litres
Intelligent control system Smart-Control Touch, use in intelligent Smart-Grid power mains possible
Technical unit handover by REMKO Technical Service possible
Integrated heating circuit pump for the supply of the heating system
Integrated electronic bypass valve for guaranteeing the minimum volume flow rate
Intelligent thawing logic circuit
Monoenergetic operation through REMKO Smart-Serv
Chimney sweep function
Wi-Fi ready

Technical data

Variant	WKF 80 Neo compact	WKF 100 Neo compact	WKF 130 Neo compact	WKF 170 Neo compact
Version	Single split	Single split	Single split	Single split
System	Air/water	Air/water	Air/water	Air/water
Operating mode	Heating/cooling/hot water	Heating/cooling/hot water	Heating/cooling/hot water	Heating/cooling/hot water
Testing	EHPA	EHPA	EHPA	EHPA
Inverter technology	Series	Series	Series	Series
