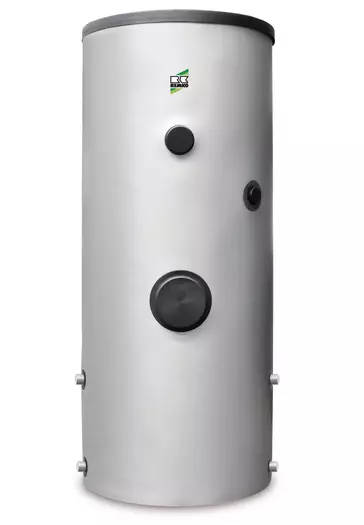

REMKO KWS SERIES Combination buffer tank

Variant EDV-Nr. Net domestic water volume
KWS 300 270700 100 Liter

Variant

REMKO KWS SERIES

Tank for domestic hot water heating

  • Enamelled with doublecoiled smooth-tube heat exchanger and particularly large heat exchanger surface
  • Inner container with magnesium protection anodes according to DIN 4753
  • PUR insulation (CFC, HCFC, and HFC-free)
  • Max. operating pressure 10 bar
  • Max. operating temperature 95°C
  • Connection possibilities for circulation 3/4" AG
  • Cold water supply and hot water outlet 1" IG
  • With cleaning flange lid D180
  • Built-in flange heating (legionella protection) or fin-tube heat exchanger RWT 18 can be retrofitted

Technical data

Variant KWS 300
Storage type Kombipufferspeicher
Net tank volume 100 l
Gross tank volume 100 l
Net domestic water volume 275 l
Gross domestic water volume 300 l
Tap profile XXL
NL number 14,6
Max. removel amount duration tapping with 45°C 13,3 l/min
Insulation type PUR-Isolierung
Connections 5/4 Zoll inch
Connection size CW/HW 1 Zoll inch
Heat exchanger surface 3,2 m²
Contents of heat exchanger 23 l
Cleaning flange 180 mm
Max. installation length flange heating 450 mm
BEVB 1,77 kW/24h
Heat retention loss 74 W
Energy efficiency class B
Max. operating pressure drinking water 10 bar
Max. operating pressure heating water 3 bar
Max. operating pressure heat exchanger 3 bar
Max. operating temperature hot water 95 °C
Max. operating temperature 95 °C
Height with insulation 1760 mm
Diameter with insulation 750 mm
Tilt height with insulation 1879 mm
Weight 190 kg
