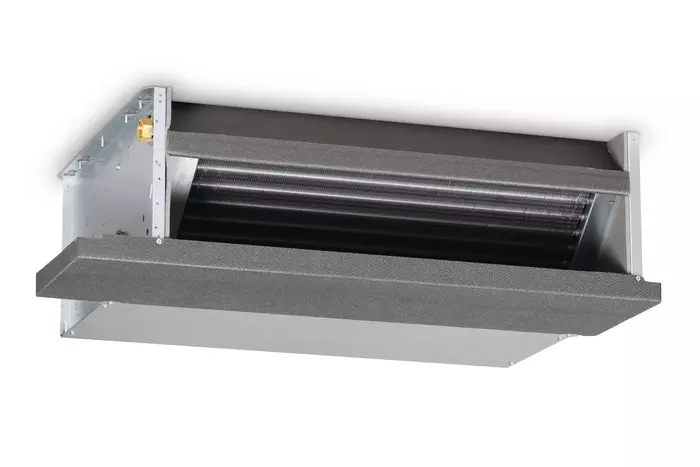

Ceiling chest KWK 875 EC ZW

KWK EC ZW SERIES Ceiling chests in 2-pipe or 4-pipe design with infinitely variable EC fan for installation into false ceilings

Chilled water systems
Cooling capacity: 1.31 - 8.78 kW
For offices and hotels

Ceiling chests for niche installation

The optimum, invisible solution for offices, banks or hotels because of its small installation height. Thanks to the modern, energy-efficient EC motor, the installed fan is infinitely variable. This increases the user's comfort. The rectangular device air outlet is designed to accommodate adjustable air outlet grilles for an individual distribution of air. The air is filtered in the unit's air intake with a reclaimable plug-in filter. The internal tangential fan allows multiple airflow settings. The diagonally fitted copper-aluminium heat exchanger is designed for cooling medium temperatures of up to 80°C. The unit can easily be upgraded to a 4-pipe system through the installation of a heating register. The register connections can be mounted on either side of the unit in a condensate-insulated housing. A valve assembly for 2- and 4-pipe systems are available as accessories for cooling control.

Invisible mounting in intermediate spaces
Low installation height
Can be positioned flexibly
Minimum weight
Low-noise unit operation ("Silent" mode)
Particularly narrow dimensions
Simple equipping of the unit in a 4-pipe design
For horizontal installation arrangement
Infinitely variable EC fans

Technical data

Variant	KWK 135 EC ZW	KWK 175 EC ZW	KWK 225 EC ZW	KWK 265 EC ZW	KWK 345 EC ZW	KWK 395 EC ZW	KWK 525 EC ZW	KWK 605 EC ZW	KWK 735 EC ZW	KWK 875 EC ZW
Cooling capacity	1.3 kW	1.8 kW	2.2 kW	2.6 kW	3.4 kW	3.9 kW	5.2 kW	6.1 kW	7.3 kW	8.8 kW
Heating capacity	1.6 kW	2.1 kW	2.6 kW	3.0 kW	3.8 kW	4.3 kW	5.7 kW	6.4 kW	7.8 kW	9.2 kW
Air flow rate min.-max.	298-84 m³/h	321-98 m³/h	394-133 m³/h	432-147 m³/h	580-196 m³/h	623-217 m³/h	882-320 m³/h	924-344 m³/h	1225-378 m³/h	1232-405 m³/h
Sound pressure level min.-max.	19-38 dB(A)	19-38 dB(A)	42-20 dB(A)	20-42 dB(A)	21-38 dB(A)	21-38 dB(A)	18-46 dB(A)	18-46 dB(A)	20-52 dB(A)	20-52 dB(A)
Power supply	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50	230/1~/50
