REMKO ASE/ASD SERIES Exhaust gas systems
| Variant | Interior rated length range | |
|---|---|---|
| ASE/ASD 130 | 130 mm Ø | |
| ASE/ASD 150 | 150 mm Ø | |
| ASE/ASD 180 | 180 mm Ø | |
| ASE/ASD 200 | 200 mm Ø | |
| ASD 300 | 300 mm Ø | |
| ASD 350 | 350 mm Ø |

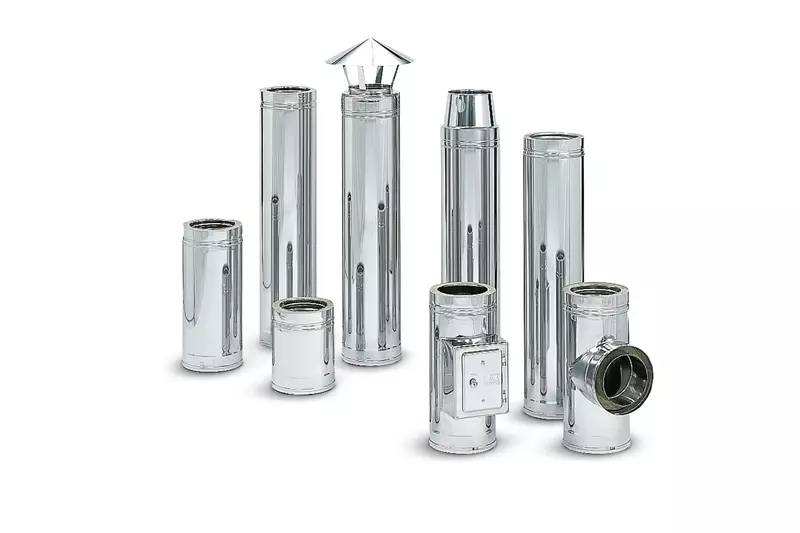

REMKO ASE/ASD SERIES Exhaust gas plants
The ideal exhaust gas solution
The REMKO ASE and ASD exhaust gas systems are especially designed for connection to modern hot air heating systems. The modular ASD systems with their three-shell design are delivered ready for assembly with continuous ceramic rock wool insulation. For reasons of corrosion protection, all components are basically manufactured from stainless steel. The exhaust gas system parts are simply connected by plugging and secured using clamps.
- Easy planning
- Optimum heat insulation
- High security
- Modular design
- Easy and economical mounting and design
- Condensate-proof implementation with seam plasma welding
- Simple double-casing plug-in technology
- Outer casing made of stainless steel 1.4301
- Official tests, including: Corrosion resistance, pressure resistance, mounting safety and temperature resistance
Technical data
| Single-walled stainless steel | Unit type | ASE | ||
|---|---|---|---|---|
| Material | Inner wall | 1.4404 | ||
| Wall thickness | 0,6 mm | |||
| Insulation | possible | |||
| Thickness | 25 mm | |||
| Internal rated diameter range | Ø 130-200 mm | |||
| Temperature range | Continuous mode | 400 °C | ||
| Max. testing temperature | 1000 °C +/- 50 K | |||
| Function | Dry, vacuum | |||
| Fuels | Oil/gas/solid fuels | |||
| Approval | CE 0432-BPR-119988 | |||
| Quality/external monitoring | Yes |
| Double-walled stainless steel | Unit type | ASD | ||
|---|---|---|---|---|
| Material | Inner wall | 1.4404 | ||
| Wall thickness | 0,4 mm | |||
| Outside wall | 1.4301 | |||
| Wall thickness | 0,4 mm | |||
| Insulation | Mineral wool | |||
| Thickness | 35 mm | |||
| Internal rated diameter range | Ø 130-350 mm | |||
| Temperature range | Continuous mode | 600 °C | ||
| Max. testing temperature | 1000 °C +/- 50 K | |||
| Function | Moist and dry, vacuum | |||
| Fuels | Oil/gas/solid fuels | |||
| Approval | CE 0432-BPR-119900 | |||
| Quality/external monitoring | Constant monitoring |
Heat requirement chart for heating systems
The diagram allows you to quickly determine the necessary heating power requirements of the hot air heating system to be used. It is based on a rough heat demand estimate for factories and similar buildings.
Heat requirement chart Determination of the necessary heating output
