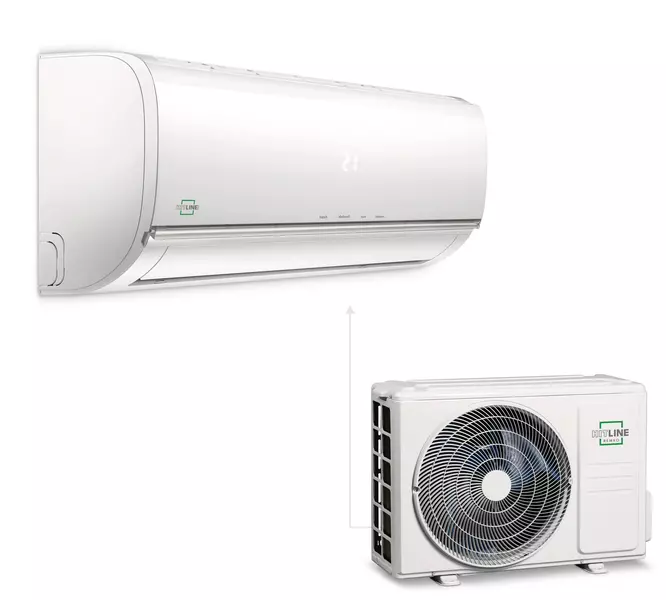

REMKO SKW DC SERIES Wall-mounted units with split design

SKW DC SERIES - Bild 56685 SKW DC SERIES - Bild 67076 SKW DC SERIES - Bild 85567 SKW DC SERIES - Bild 56686

REMKO SKW DC SERIES Wall-mounted units in a split design

Simple installation above doors or in the upper part of the wall

The units cool, filter, and dehumidify humid air in the room. The outdoor component can be individually positioned. Outside on the ground, mounted on the wall, on the roof or in well-ventilated areas.

The inverter technology used in the SKW DC series guarantees a comfortable room climate in combination with low energy costs. The integrated inverter condenser modulates and thereby ensures minimal temperature fluctuation.

  • BioClean function integrated as standard
  • Automatic restart after power failure
  • Weather-resistant outdoor units
  • Microprocessor-controlled device technology
  • Swing function with horizontal air distribution
  • Removable air filter
  • Programmable 24-hour timer function
  • Temperature-controlled winter fan speed control for cooling operation to -25 °C
  • Low-noise unit operation
  • USB interface for optional Wi-Fi stick
  • Universal operation with max. 30 m long connecting lines
  • Outdoor unit is filled with R32 refrigerant at the factory
    (line length up to 5 m)

BioClean system
Disinfects the room air by means of bipolar ionisation


Technical data

VariantSKW 261 DCSKW 351 DCSKW 521 DC
Cooling capacity2.60 (0.90-3.40) kW 3.50 (1.10-4.20) kW 5.20 (1.40-6.10) kW
Energy efficiency rating for coolingA++ A++ A++
Energy efficiency ratio SEER6.2 6.1 7.1
Power consumption cooling, annual, QCE147 kWh201 kWh256 kWh
Heating capacity2.90 (0.80-3.40) 3.80 (0.90-4.20) 5.60 (1.40-6.70)
Energy efficiency rating for heatingA+ A+ A+
Energy efficiency ratio SCOP4 4 4
Power consumption heating, annual, QHE735 kWh805 kWh1435 kWh
RefrigerantR32 R32 R32
GWP value675 675 675
Refrigerant, basic amount0.5 kg0.5 kg1 kg
Usage area (room size) approx. 80.0/ 110.0/ 160.0/
Operating range, indoor unit17-30 °C 17-30 °C 17-30 °C
Operating range, cooling+5 to +50 °C +5 to +50 °C +5 to +50 °C
Operating range heating-15 to +30 °C -15 to +30 °C -15 to +30 °C
Fan speeds4 4 4
Air flow rate speed settings360/460/520 m³/h 360/500/600 m³/h 540/680/840 m³/h
Sound pressure level per speed setting, indoor unit26 / 30 / 40 / - / - dB(A) 26 / 34 / 40 / - / - dB(A) 30 / 37 / 44 / - / - dB(A)
Soundpower indoor unit max53 dB(A)53 dB(A)55 dB(A)
Sound power max. outdoor unit61dB(A) 65dB(A) 61dB(A)
Power supply230/1~/50 230/1~/50 230/1~/50
Refrigerant connection injection1/4 1/4 1/4
Refrigerant connection, suction pipe3/8 3/8 1/2
Condensate draining connection Ø18 mm18 mm18 mm
Refrigerant line length/height max.25 / 10 m 25 / 10 m 30 / 20 m
Dimensions of indoor unit h/w/d285/805/194 mm 285/805/194 mm 302/957/213 mm
Dimensions outdoor unit h/w/d550/700/275 mm 550/700/275 mm 554/800/333 mm
Weight indoor/outdoor unit 7.5 / 22.7 kg 7.5 / 22.7 kg 10 / 34 kg

Accessories / Spare parts

Für dieses Gerät stehen kein Ersatzteile zur Verfügung.

Downloads

Language
Pictures
REMKO SKW 261 DC jpg, 1,123,661,000.0
REMKO SKW 261 DC jpg, 801,802,000.0
REMKO SKW 261 DC jpg, 595,677,000.0
REMKO SKW 261 DC AT jpg, 1,123,661,000.0
REMKO SKW 261 DC IT jpg, 801,802,000.0

Cooling load calculation for air-conditioners

The following rule of thumb applies when calculating the cooling capacity:
Approximately 30 W of cooling capacity are required per cubic meter. The cooling capacity for a room with a surface area of 28 m2 and height of 2.5 m can be calculated as follows:

28 m2 x 2,5 m x 30 W/m3 = 2.100 Watt (2,1 kW)

We recommend that you always calculate the cooling capacity for the room precisely.
